Elevator Nylon Traction Pulley Elevator Nylon Pulley Wheels Traction Sheave Elevator Drive Pulley
Product Overview

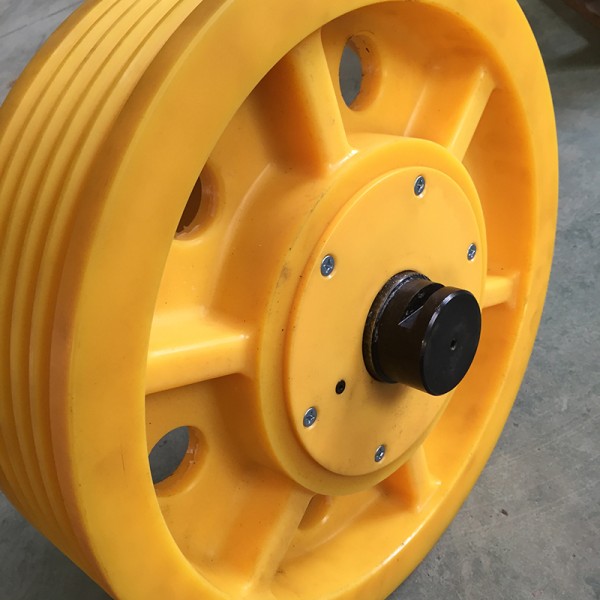

The nylon traction pulley is manufactured from high-quality cast nylon (PA 6G / MC nylon). As a key component of the elevator traction system, it changes the direction of wire rope force and increases the center distance between the car and counterweight. It offers significant advantages including self-lubrication, maintenance-free operation, and low noise.
Key Features
· Self-Lubricating & Oil-Free: The nylon material has a low friction coefficient, requiring no grease during operation. It eliminates oil contamination and greatly reduces maintenance costs.
· Quiet Operation: The material naturally absorbs vibration and reduces noise. When paired with precision bearings, it significantly lowers friction noise during elevator operation.
· Lightweight & Durable: Weighs only about 1/7 of a steel sheave, making installation and handling easier. Offers excellent wear resistance and long service life.
· Precision Machining: Rope grooves are CNC-machined for accurate dimensions, effectively reducing wire rope wear.
· High-Visibility Color: The internationally standardized yellow color alerts maintenance personnel to rotating parts.
Specifications
· Diameter range: Φ120–800mm (common sizes: 200–550mm)
· Applicable rope diameter: 8–16mm (customizable)
· Groove types: U-groove / V-groove / Undercut semi-circular groove

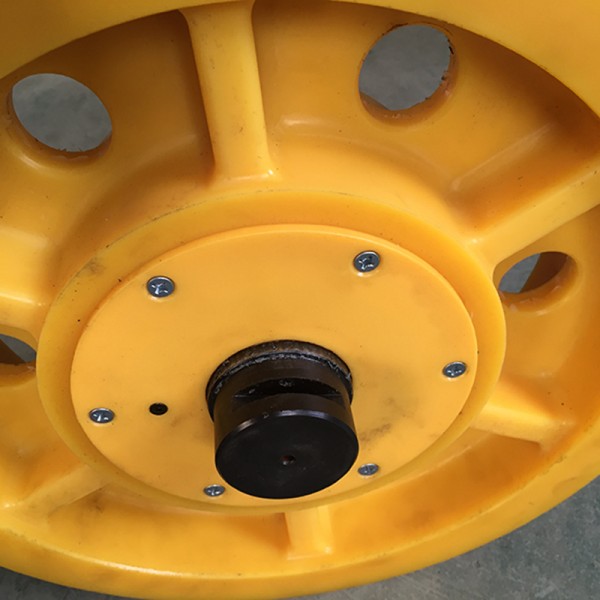

· Bearing configuration: Sealed deep-groove ball bearings, dustproof and maintenance-free
Applications
Suitable for residential passenger elevators, commercial elevators, machine-room-less (MRL) elevators, and home lifts. Especially ideal for locations with high requirements for quietness and cleanliness.
Installation & Service
During installation, ensure end-face parallelism and verticality error ≤2.0mm. Custom non-standard sizes are supported. Load calculation and installation guidance services are available.
If you need to adjust the type and diameter range of the rope groove or supplement specific model parameters, further customization is possible.
Welcome to visit, if you didn't find the goods you want can send processing drawing to us with production.
1, Many specifications
2, good quality
3, reasonable prices
4, thoughtful service
Main products: complete elevators, various specifications of rope fastening, oil buffer, guide shoe, shoe lining, overspeed governor, safety accessories and all elevator parts.
